تفاصيل المنتج:
|
| إصدار الشهادات: | CE | حالة: | جديد |
|---|---|---|---|
| ضمان: | 2 سنة | أقصى تسارع: | 1.0 جم |
| دقة التكرار: | ± 0.03mm | سرعة قطع: | 80 م/دقيقة |
| نوع الليزر: | ليزر الألياف | قوة الليزر: | 1.5kw-20kw اختياري |
| وزن إجمالي واحد: | 2800 كجم | ||
| إبراز: | 12000W fiber laser cutting machine,automatic focus laser cutter,precision laser cutting system,automatic focus laser cutter,precision laser cutting system |
||

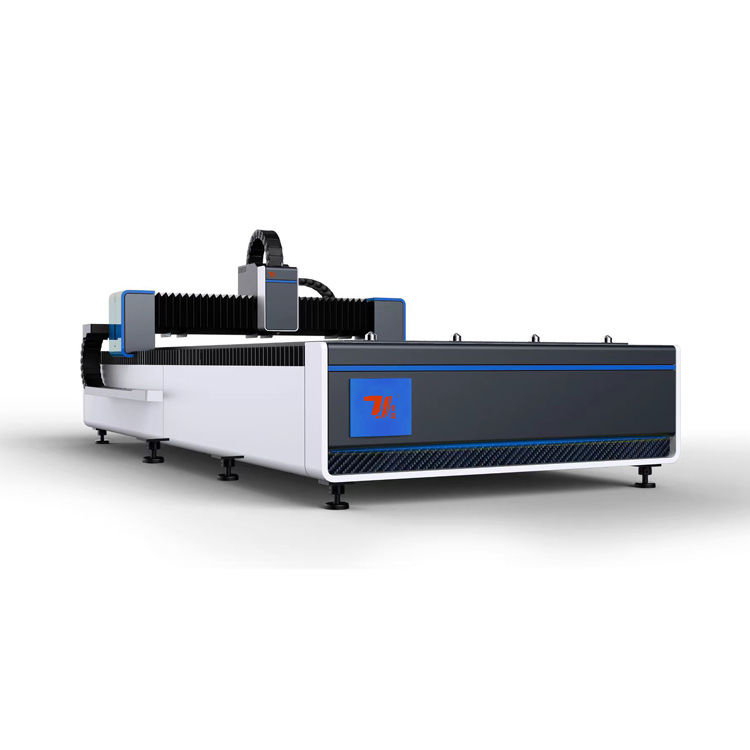

Product Parameter
| Laser source | Raycus |
| Power | 2000W |
| Cutting range | 3050/1510mm |
| Max positioning speed | 80m/min |
| X.Y axis max acceleration speed | 1.0G |
| Laser cutting head | Raytools |
| Control system | Raytools |
| Motor | INVT |
| Reducer | Kawaura |
| Transmission | Double Drive Gear Rack |
| Guide rail | SYCK Guide Rail |
| Chiller | S&A or Hanli |
| Valves | NNT |
| Electricity demand | 380V/50Hz/60Hz |
| Working temperature | 0-50℃ |
| Cooling | Water cooling |
| Continuous working time | 24 Hours |
| Appearance size | 4700*2300*1800mm |

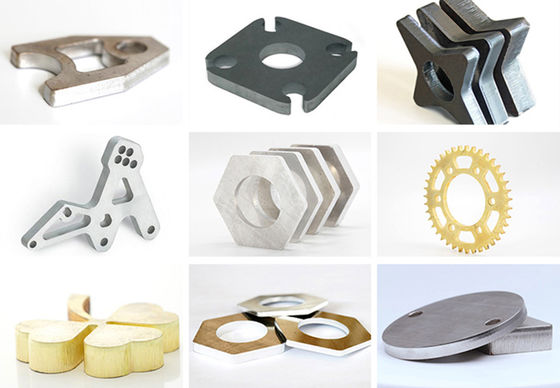

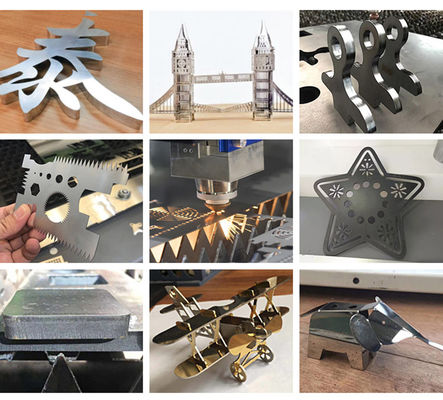

Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industries:
Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
