تفاصيل المنتج:
|
| إصدار الشهادات: | CE | حالة: | جديد |
|---|---|---|---|
| ضمان: | 2 سنة | مواد قابلة للتطبيق: | معدن |
| الكلمات الرئيسية: | 6 روبوت لحام المحور | مخصص: | يقبل |

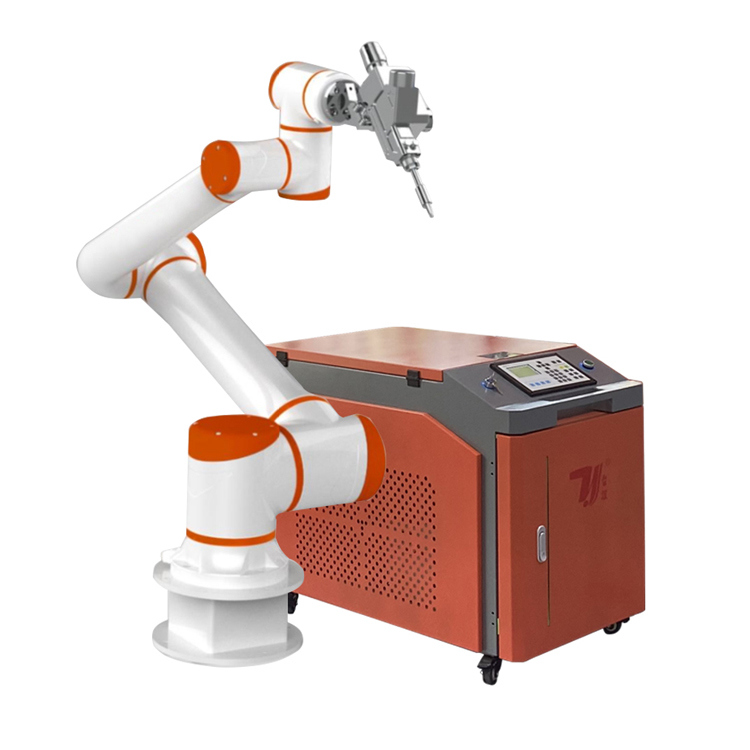

| إبراز: | 3000W cobot laser welding machine,automotive laser welding machine,aerospace laser welding system,automotive laser welding machine,aerospace laser welding system |
||
TECHNICAL GUIDANCE FOR ONTOLOGY
|
Robotic Arm Parameters
|
MaxArmspan |
1077mm |
|
|
Payload |
7kg |
||
|
Repeat Positioning |
±0.02mm |
||
|
ToolMax speed |
3000mm/s |
||
|
ControlBus/Freq |
EtherCAT/1KHz |
||
|
Rated power |
260W |
||
|
Temperature |
-5~55℃ |
||
|
Humidity |
5%~90%RH,non-condensing |
||
|
Installation mode |
Arbitrary angle |
||
|
Protection Degree |
IP65 |
||
|
weight |
21kg |
||
|
Noise level |
≤60dB |
||
|
Work port |
1/0 Port |
24V/18;DI:2D0:2AI |
|
|
Tool Pot |
COM Port |
24V/1A;1RS485:1 EtherCAT |
|
| Joint Movement Parameters
|
Iotion Range |
J1 |
-360°“360° |
|
J2 |
-360°"360° |
||
|
J3 |
-165°“165° |
||
|
J4 |
-360°"360° |
||
|
J5 |
-360°360° |
||
|
J6 |
-360°“360° |
||
|
Max Speed |
J1 |
210°s |
|
|
J2 |
210/s |
||
|
J3 |
210°/s |
||
|
J4 |
360°/s |
||
|
J5 |
360°/s |
||
|
J6 |
360°/s |
||
TECHNICAL GUIDANCE FOR ONTOLOGY
| TECHNICAL GUIDANCE FOR ONTOLOGY | |||
| Robotic Arm Parameters | MaxArmspan | 1460.7mm | |
| Payload | 6kg | ||
| Repeat Positioning | ±0.05mm | ||
| ToolMax speed | 3000mm/s | ||
| ControlBus/Freq | EtherCAT/1KHz | ||
| Rated power | 260W | ||
| Temperature | -5~55℃ | ||
| Humidity | 5%~90%RH,non-condensing | ||
| Installation mode | Arbitrary angle | ||
| Protection Degree | IP65 | ||
| weight | 22kg | ||
| Noise level | ≤60dB | ||
| Work port | 1/O Port | 24V/1A;DI;2D0;2AI | |
| Tool Port | COM Port | 124V/1A;1RS485;1EtherCAT | |
| Joint Movement Parameters | Motion Range | J1 | -360°~360° |
| J2 | -360°~360° | ||
| J3 | -165°~165° | ||
| J4 | -360°~360° | ||
| J5 | -360°~360° | ||
| J6 | -360°~360° | ||
| Max Speed | J1 | 210°s | |
| J2 | 210/s | ||
| J3 | 210°/s | ||
| J4 | 360°/s | ||
| J5 | 360°/s | ||
| J6 | 360°/s | ||
| TECHNICAL GUIDANCE FOR ONTOLOGY | |||
| Robotic Arm Parameters | MaxArmspan | 2027mm | |
| Payload | 20kg | ||
| Repeat Positioning | ±0.05mm | ||
| ToolMax speed | 4000mm/s | ||
| ControlBus/Freq | EtherCAT/1KHz | ||
| Rated power | 1500W | ||
| Temperature | -5~55℃ | ||
| Humidity | 5%~90%RH,non-condensing | ||
| Installation mode | Arbitrary angle | ||
| Protection Degree | IP65 | ||
| weight | 68kg | ||
| Noise level | ≤60dB | ||
| Work port | 1/O Port | 24V/1A;DI;2D0;2AI | |
| Tool Port | COM Port | 124V/1A;1RS485;1EtherCAT | |
| Joint Movement Parameters | Motion Range | J1 | -360°~360° |
| J2 | -360°~360° | ||
| J3 | -165°~165° | ||
| J4 | -360°~360° | ||
| J5 | -360°~360° | ||
| J6 | -360°~360° | ||
| Max Speed | J1 | 180°s | |
| J2 | 180°s | ||
| J3 | 210°/s | ||
| J4 | 270°/s | ||
| J5 | 270°/s | ||
| J6 | 270°/s | ||
